81989A

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Keysight Technologies.

The 81989A from Keysight Technologies is a Laser with Wavelength 1465 to 1575 nm, Power 10 to 14.5 dBm, Output Power (CW) 10 to 14.5 dBm, Operating Temperature 10 to 35 Degree C, Storage Temperature -40 to 70 Degree C. More details for 81989A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    81989A
  • Manufacturer
    Keysight Technologies
  • Description

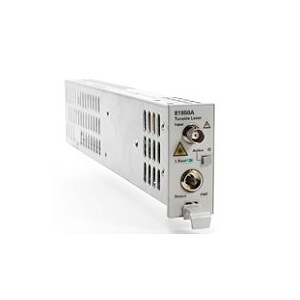

    81950A Compact Tunable Laser Module

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Defense / Military & Aerospace, Communications
  • Operation Mode
    CW Laser
  • Wavelength
    1465 to 1575 nm
  • Wavelength Accuracy
    ± 100 pm
  • Spectral Width :
    100 kHz
  • Power
    10 to 14.5 dBm
  • Output Power (CW)
    10 to 14.5 dBm
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Mode
    Polarization Maintaning
  • Laser Color
    Infrared
  • Polarization ratio :
    16 dB
  • Laser Class
    Class 1M
  • Warm up time
    1 hour
  • Power Stability
    0.01 dB

Physical Properties

  • Dimension
    75 x 32 x 335 mm
  • Weight
    0.95 Kg

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
  • Storage Temperature
    -40 to 70 Degree C
