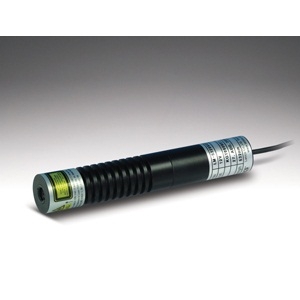

LM-5310KGL

Laser by Lanics
165 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lanics.

The LM-5310KGL from Lanics is a Laser with Wavelength 532 nm, Power Under 1 W, Output Power (CW) Under 1 W, Operating Temperature 15 to 35 Degree C, Storage Temperature -40 to 80 Degree C. More details for LM-5310KGL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LM-5310KGL
  • Manufacturer
    Lanics

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Power
    Under 1 W
  • Output Power (CW)
    Under 1 W
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Beam Shape
    Line, Gaussian
  • Current
    90 mA
  • Voltage
    12 VDC

Physical Properties

  • Dimension
    20 x 116 mm
  • Weight
    76 g

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    -40 to 80 Degree C
