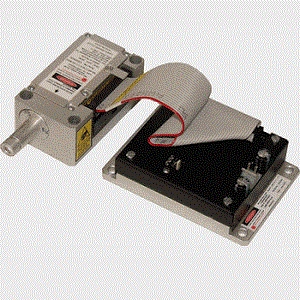

LCM-S-111-NP25

Laser by Laser-export
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laser-export.

The LCM-S-111-NP25 from Laser-export is a Laser with Wavelength 532 nm, Power 11 to 55 mW, Output Power (CW) 11 to 55 mW. More details for LCM-S-111-NP25 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LCM-S-111-NP25
  • Manufacturer
    Laser-export

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head, OEM Laser Module
  • Application Industry
    Scientific / Research, Entertainment
  • Application
    Spectroscopy, Microscopy, Test & Measurement, Spectrum Analysis, Flow Cytometry, Holography
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Power
    11 to 55 mW
  • Output Power (CW)
    11 to 55 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization
    Horizontal
  • Transverse Mode
    TEM00
  • Beam Divergence :
    0.6 mrad
  • Warm up time
    10 Minutes
  • Interface
    RS-232
  • Voltage
    4.5 to 6 VDC
  • RoHS
    Yes
  • Note
    Max. Current Consumption, A: 4 A

Physical Properties

  • Dimension
    80 x 60 x 31mm
  • Weight
    0.15 kg
  • Beam Diameter
    1.1 mm
