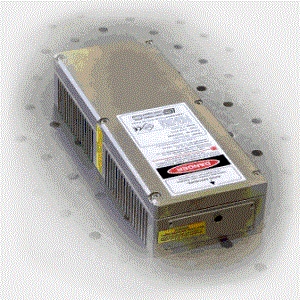

TECH-263

Laser by Laser-export
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laser-export.

The TECH-263 from Laser-export is a Laser with Wavelength 263 nm, Power 0.2 W, Output Power (Pulsed) 0.2 W, Pulse Energy 10 to 50 µJ, Pulse Width 3 to 5 ns. More details for TECH-263 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TECH-263
  • Manufacturer
    Laser-export

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Communications, Environmental
  • Application
    Machine Vision, Marking, Spectroscopy, Sensing, Optical Fiber Communication, Fluorescence, Remote Sensing, Laser Ablation
  • Operation Mode
    Pulsed Laser
  • Wavelength
    263 nm
  • Power
    0.2 W
  • Output Power (Pulsed)
    0.2 W
  • Pulse Energy :
    10 to 50 µJ
  • Pulse Energy
    10 to 50 µJ
  • Pulse Width
    3 to 5 ns
  • Repetition Rate
    1 kHz
  • Pulse to Pulse Stability
    10%, 15%
  • Technology
    Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization
    Horizontal
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1 mrad
  • Power Consumption
    15 to 70 W
  • Peak Power
    6 to 16 kW
  • Interface
    RS-232
  • Voltage
    24 V
  • RoHS
    Yes
  • Note
    Max. Current Consumption, A: 4 to 5 A

Physical Properties

  • Laser Head Dimension
    215 x 70 x 40 mm
  • Power Supply Dimension
    230 x 148 x 47 mm
  • Weight
    1.2 kg
  • Beam Diameter
    1.5 mm

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C
