6014-0019

Laser by QPC Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPC Lasers.

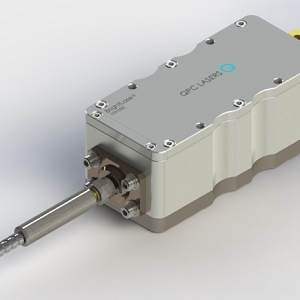

The 6014-0019 from QPC Lasers is a Laser with Wavelength 1400 to 1420 nm, Power 5 W, Output Power (CW) 5 W, Operating Temperature 18 to 25 Degree C, Storage Temperature -20 to 70 Degree C. More details for 6014-0019 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    6014-0019
  • Manufacturer
    QPC Lasers
  • Description
    1410 nm, 5 W, 105 µm fiber-coupled module

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Medical
  • Application
    Aesthetics, Skin Rejuvenation
  • Operation Mode
    CW Laser
  • Wavelength
    1400 to 1420 nm
  • Spectral Width :
    15 nm
  • Power
    5 W
  • Output Power (CW)
    5 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Connectors
    HP-SMA905, DB15
  • Current
    15 to 20 A
  • Laser Class
    Class 4
  • Numerical Aperture
    0.22
  • Voltage
    1.1 to 1.3 V
  • RoHS
    Yes
  • Note
    E-O Conversion Efficiency: 30%

Physical Properties

  • Dimension
    88 x 40 x 36 mm
  • Fiber diameter
    105 µm
  • Fiber length
    2 m

Environmental Conditions

  • Operating Temperature
    18 to 25 Degree C
  • Storage Temperature
    -20 to 70 Degree C
