6107-0000

Laser by QPC Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPC Lasers.

The 6107-0000 from QPC Lasers is a Laser with Wavelength 795 nm, Power 25 W, Output Power (CW) 25 W, Operating Temperature 20 to 35 Degree C, Storage Temperature -20 to 70 Degree C. More details for 6107-0000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    6107-0000
  • Manufacturer
    QPC Lasers
  • Description

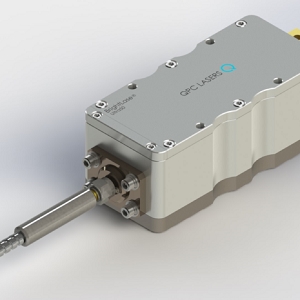

    795 nm, spectrally narrowed, 25 W, 1000 µm fiber-coupled module

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific Research
  • Application
    Rubidium Vapor Pumping, Pumping Rb Vapor, Spin Exchange Optical Pumping (SEOP)
  • Operation Mode
    CW Laser
  • Wavelength
    795 nm
  • Spectral Width :
    0.20 nm
  • Power
    25 W
  • Output Power (CW)
    25 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Rubidium Vapor
  • Laser Gain Medium
    Rubidium-Doped
  • Connectors
    SMA905, DB15
  • Current
    42 to 50 A
  • Laser Class
    Class 4
  • Numerical Aperture
    0.22
  • Voltage
    1.8 to 1.9 V
  • RoHS
    Yes
  • Note
    E-O Conversion Efficiency: 35%

Physical Properties

  • Dimension
    88 x 40 x 36 mm
  • Fiber diameter
    1000 µm
  • Fiber length
    51 mm

Environmental Conditions

  • Operating Temperature
    20 to 35 Degree C
  • Storage Temperature
    -20 to 70 Degree C
