6119-0000

Laser by QPC Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPC Lasers.

The 6119-0000 from QPC Lasers is a Laser with Wavelength 1906 to 1910 nm, Power 6 W, Output Power (CW) 6 W, Operating Temperature 18 to 25 Degree C, Storage Temperature -20 to 70 Degree C. More details for 6119-0000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    6119-0000
  • Manufacturer
    QPC Lasers
  • Description

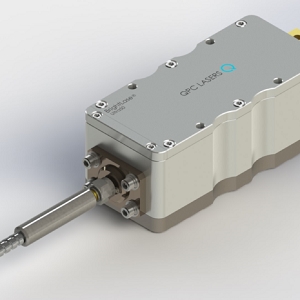

    1908 nm Wavelength stabilized, 6 W, 400 µm fiber-coupled module

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific Research
  • Application
    Resonant Pumping
  • Operation Mode
    CW Laser
  • Wavelength
    1906 to 1910 nm
  • Spectral Width :
    3 nm
  • Power
    6 W
  • Output Power (CW)
    6 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Ho:YAG
  • Laser Gain Medium
    Holmium-Doped
  • Connectors
    HP-SMA905, DB15
  • Current
    48 to 55 A
  • Laser Class
    Class 4
  • Numerical Aperture
    0.22
  • Voltage
    1.1 to 1.2 V
  • RoHS
    Yes
  • Note
    E-O Conversion Efficiency: 10 to 12%

Physical Properties

  • Dimension
    88 x 40 x 36 mm
  • Fiber diameter
    400 µm
  • Fiber length
    2 m

Environmental Conditions

  • Operating Temperature
    18 to 25 Degree C
  • Storage Temperature
    -20 to 70 Degree C
