6213-M002

Laser by QPC Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPC Lasers.

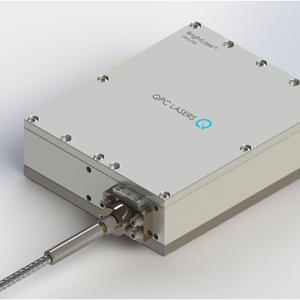

The 6213-M002 from QPC Lasers is a Laser with Wavelength 1305 to 1335 nm, Power 45 W, Output Power (CW) 45 W, Operating Temperature 20 to 30 Degree C, Storage Temperature -20 to 70 Degree C. More details for 6213-M002 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    6213-M002
  • Manufacturer
    QPC Lasers
  • Description
    1320 nm, 45 W, 400 µm fiber-coupled module with Medica features

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Automotive / Industrial & Manufacturing, Medical
  • Application
    Materials Processing, Surgery
  • Operation Mode
    CW Laser
  • Wavelength
    1305 to 1335 nm
  • Spectral Width :
    15 nm
  • Power
    45 W
  • Output Power (CW)
    45 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Connectors
    HP-SMA905, DB15
  • Current
    40 to 50 A
  • Laser Class
    Class 4
  • Numerical Aperture
    0.22
  • Voltage
    3.6 to 4 V
  • RoHS
    Yes
  • Note
    E-O Conversion Efficiency: 28 to 32%

Physical Properties

  • Dimension
    122 x 100 x 34.4 mm
  • Fiber diameter
    400 µm
  • Fiber length
    2 to 5 m

Environmental Conditions

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
