6214-0011

Laser by QPC Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPC Lasers.

The 6214-0011 from QPC Lasers is a Laser with Wavelength 1460 to 1480 nm, Power 18 W, Output Power (CW) 18 W, Operating Temperature 20 to 30 Degree C, Storage Temperature -20 to 70 Degree C. More details for 6214-0011 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    6214-0011
  • Manufacturer
    QPC Lasers
  • Description

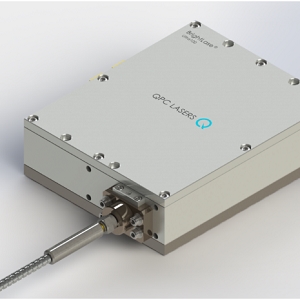

    1470 nm, 18 W, 105 µm fiber-pigtailed module

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific Research
  • Application
    Materials Processing, Pumping
  • Operation Mode
    CW Laser
  • Wavelength
    1460 to 1480 nm
  • Spectral Width :
    10 nm
  • Power
    18 W
  • Output Power (CW)
    18 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Er:YAG
  • Laser Gain Medium
    Erbium-Doped
  • Connectors
    DB15
  • Current
    35 to 40 A
  • Laser Class
    Class 4
  • Numerical Aperture
    0.22
  • Voltage
    2.5 to 2.8 V
  • RoHS
    Yes
  • Note
    E-O Conversion Efficiency: 20%

Physical Properties

  • Dimension
    122 x 100 x 34.4 mm
  • Fiber diameter
    105 µm
  • Fiber length
    2 m

Environmental Conditions

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
