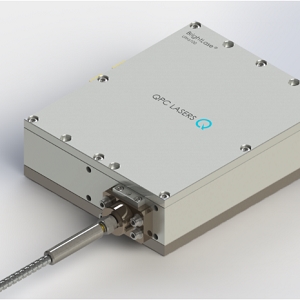

6309-0001

Laser by QPC Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPC Lasers.

The 6309-0001 from QPC Lasers is a Laser with Wavelength 974.5 to 977.5 nm, Power 120 W, Output Power (CW) 120 W, Operating Temperature 20 to 30 Degree C, Storage Temperature -20 to 70 Degree C. More details for 6309-0001 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    6309-0001
  • Manufacturer
    QPC Lasers
  • Description
    976 nm Wavelength stabilized, 120 W, 400 µm fiber-coupled module

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific Research
  • Application
    Resonant Pumping, Pumping DPSSL, Pumping Fiber Lasers
  • Operation Mode
    CW Laser
  • Wavelength
    974.5 to 977.5 nm
  • Spectral Width :
    1 nm
  • Power
    120 W
  • Output Power (CW)
    120 W
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Connectors
    SMA905, DB15
  • Current
    55 to 65 A
  • Laser Class
    Class 4
  • Numerical Aperture
    0.22
  • Voltage
    4.6 to 5 V
  • RoHS
    Yes
  • Note
    E-O Conversion Efficiency: 45%

Physical Properties

  • Dimension
    122 x 100 x 34.4 mm
  • Fiber diameter
    400 µm
  • Fiber length
    2 m

Environmental Conditions

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
