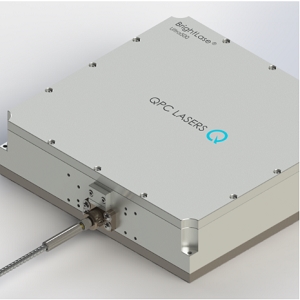

6413-M200

Laser by QPC Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPC Lasers.

The 6413-M200 from QPC Lasers is a Laser with Wavelength 1308 to 1333 nm, Power 150 W, Output Power (CW) 150 W, Operating Temperature 20 to 30 Degree C, Storage Temperature -20 to 70 Degree C. More details for 6413-M200 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    6413-M200
  • Manufacturer
    QPC Lasers
  • Description
    1318 nm, 150 W, 600 µm fiber-coupled module with Medica features

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Automotive / Industrial & Manufacturing, Medical
  • Application
    Materials Processing, Surgery
  • Operation Mode
    CW Laser
  • Wavelength
    1308 to 1333 nm
  • Spectral Width :
    20 nm
  • Power
    150 W
  • Output Power (CW)
    150 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Connectors
    HP-SMA905, DB15
  • Current
    48 to 60 A
  • Laser Class
    Class 4
  • Numerical Aperture
    0.22
  • Voltage
    9.8 to 10.5 V
  • RoHS
    Yes
  • Note
    E-O Conversion Efficiency: 28 to 32%

Physical Properties

  • Dimension
    200 x 190 x 62 mm
  • Fiber diameter
    600 µm

Environmental Conditions

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
