D6310B3FX

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laserglow Technologies.

The D6310B3FX from Laserglow Technologies is a Laser with Wavelength 635 nm, Power 1000 mW, Storage Temperature -10 to 50 Degree C. More details for D6310B3FX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    D6310B3FX
  • Manufacturer
    Laserglow Technologies
  • Description

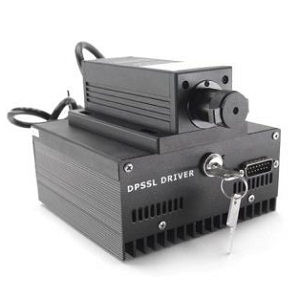

    635 nm Red Collimated Diode Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research
  • Application
    Spectrum Analysis
  • Operation Mode
    CW Laser
  • Wavelength
    635 nm
  • Power
    1000 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-Mode
  • Laser Color
    Red
  • Laser Class
    Class IV
  • Modulation Frequency
    10 kHz
  • Power Consumption
    21 W
  • Power Stability
    3% RMS/4h
  • Power Supply
    85 to 264 VAC
  • Voltage
    0 to 5 VDC

Physical Properties

  • Laser Head Dimension
    180 x 86 x 65 mm
  • Laser Head Weight
    1.6 Kg
  • Power Supply Dimension
    154 x 155 x 95 mm
  • Power Supply Weight
    1.5 Kg

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Storage Temperature
    -10 to 50 Degree C
