DA6300XSX

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laserglow Technologies.

The DA6300XSX from Laserglow Technologies is a Laser with Wavelength 1064 nm, Power 300 mW, Operating Temperature -10 to 35 Degree C, Storage Temperature -10 to 50 Degree C. More details for DA6300XSX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DA6300XSX
  • Manufacturer
    Laserglow Technologies
  • Description

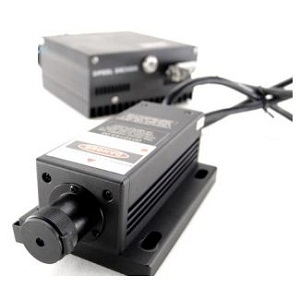

    1064 nm IR Collimated Diode Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Communications, Scientific / Research
  • Application
    Optical Fiber Communication, Spectrum Analysis, Fluorescence, Microscopy, DNA Sequencing
  • Operation Mode
    CW Laser
  • Wavelength
    1064 nm
  • Wavelength Accuracy
    5 nm
  • Power
    300 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Beam Divergence :
    3 mrad
  • Laser Class
    Class IIIb
  • Warm up time
    5 Min.
  • Modulation Frequency
    10 kHz
  • Power Stability
    10% RMS/4h
  • Pointing Stability :
    0.05 mrad
  • Power Supply
    85 to 264 VAC
  • Voltage
    0 to 5 VDC

Physical Properties

  • Laser Head Dimension
    140.7 x 73 x 46.2 mm
  • Laser Head Weight
    0.6 Kg
  • Power Supply Dimension
    133 x 130 x 65 mm
  • Power Supply Weight
    1.2 Kg

Environmental Conditions

  • Operating Temperature
    -10 to 35 Degree C
  • Storage Temperature
    -10 to 50 Degree C
