J481001FX

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laserglow Technologies.

The J481001FX from Laserglow Technologies is a Laser with Wavelength 488 nm, Power 100 mW, Operating Temperature 10 to 45 Degree C, Storage Temperature -10 to 50 Degree C. More details for J481001FX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    J481001FX
  • Manufacturer
    Laserglow Technologies
  • Description

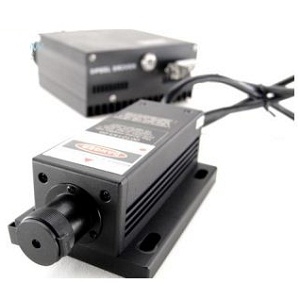

    488 nm Blue Low Noise Collimated Diode Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research
  • Application
    Spectroscopy, Fluorescence
  • Operation Mode
    CW Laser
  • Wavelength
    488 nm
  • Wavelength Accuracy
    5 nm
  • Power
    100 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-Mode
  • Laser Color
    Blue
  • Beam Divergence :
    1 mrad
  • Laser Class
    Class IIIb
  • Warm up time
    5 Min.
  • Modulation Frequency
    30 kHz
  • Analog Modulation
    30 kHz
  • Power Stability
    1% RMS/4h
  • Pointing Stability :
    0.006 mrad
  • Power Supply
    85 to 264 VAC
  • Voltage
    0 to 5 VDC

Physical Properties

  • Laser Head Dimension
    140.7 x 73 x 46.2 mm
  • Laser Head Weight
    0.6 Kg
  • Power Supply Dimension
    154 x 155 x 95 mm
  • Power Supply Weight
    1.5 Kg
  • Beam Area
    3 mm

Environmental Conditions

  • Operating Temperature
    10 to 45 Degree C
  • Storage Temperature
    -10 to 50 Degree C

Technical Documents
Click to view more product details on manufacturer's website
Request a Quote
