JM03005FX

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laserglow Technologies.

The JM03005FX from Laserglow Technologies is a Laser with Wavelength 2200 nm, Power 300 mW, Storage Temperature -10 to 50 Degree C. More details for JM03005FX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    JM03005FX
  • Manufacturer
    Laserglow Technologies
  • Description

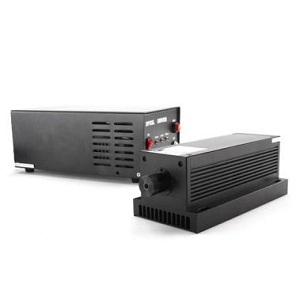

    2200 nm IR Low Noise Collimated Diode Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research
  • Application
    Spectroscopy, Fluorescence
  • Operation Mode
    CW Laser
  • Wavelength
    2200 nm
  • Power
    300 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-Mode
  • Laser Color
    Infrared
  • Beam Divergence :
    5 mrad
  • Laser Class
    Class IIIb
  • Modulation Frequency
    30 kHz
  • Analog Modulation
    30 kHz
  • Power Stability
    5% RMS/4h
  • Power Supply
    85 to 264 VAC
  • Voltage
    0 to 5 VDC

Physical Properties

  • Laser Head Dimension
    155 x 77 x 60 mm
  • Laser Head Weight
    0.9 Kg
  • Power Supply Dimension
    268 x 145 x 106 mm
  • Power Supply Weight
    2.6 Kg
  • Beam Area
    12 mm

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Storage Temperature
    -10 to 50 Degree C
