The Q520103SX from Laserglow Technologies is a Laser with Wavelength 523.5 nm, Power 40 mW, Output Power (Pulsed) 40 mW, Pulse Energy 10 µJ, Pulse Width 15 ns. More details for Q520103SX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Q520103SX
  • Manufacturer
    Laserglow Technologies
  • Description

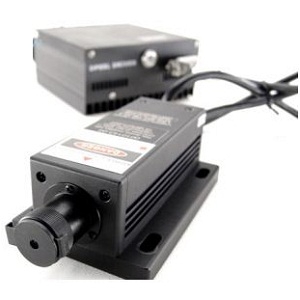

    523.5 nm Green Q-Switched DPSS Laser System

General Parameters

  • Type
    Laser system
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research
  • Application
    Fluorescence, Spectroscopy
  • Operation Mode
    Pulsed Laser
  • Wavelength
    523.5 nm
  • Power
    40 mW
  • Output Power (Pulsed)
    40 mW
  • Pulse Energy :
    10 µJ
  • Pulse Energy
    10 µJ
  • Pulse Width
    15 ns
  • Repetition Rate
    4 kHz
  • Technology
    Q-Switched Laser, DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-Mode
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.5 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Class
    Class IV
  • Warm up time
    10 Min.
  • Modulation Frequency
    1 kHz
  • Analog Modulation
    4 kHz
  • Power Stability
    3% RMS/4h
  • Peak Power
    2000 W
  • Pointing Stability :
    0.05 mrad
  • Power Supply
    85 to 264 VAC
  • Voltage
    0 to 5 VDC

Physical Properties

  • Laser Head Dimension
    140.8 x 73 x 46.2 mm
  • Laser Head Weight
    0.6 Kg
  • Power Supply Dimension
    133 x 130 x 65 mm
  • Power Supply Weight
    1.2 Kg
  • Beam Area
    2 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
  • Storage Temperature
    -10 to 50 Degree C
