Q530035SX

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laserglow Technologies.

The Q530035SX from Laserglow Technologies is a Laser with Wavelength 532 nm, Power 12 mW, Output Power (Pulsed) 12 mW, Pulse Energy 3 µJ, Pulse Width 10 ns. More details for Q530035SX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Q530035SX
  • Manufacturer
    Laserglow Technologies
  • Description

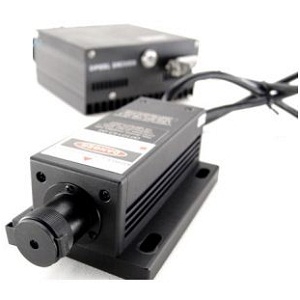

    532 nm Green Q-Switched DPSS Laser System

General Parameters

  • Type
    Laser system
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research
  • Application
    Fluorescence, Spectroscopy
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Spectral Width :
    0.2 nm
  • Power
    12 mW
  • Output Power (Pulsed)
    12 mW
  • Pulse Energy :
    3 µJ
  • Pulse Energy
    3 µJ
  • Pulse Width
    10 ns
  • Repetition Rate
    4 kHz
  • Technology
    Q-Switched Laser, DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-Mode
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.5 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Class
    Class IV
  • Warm up time
    10 Min.
  • Analog Modulation
    4 kHz
  • Power Consumption
    28 W
  • Power Stability
    5% RMS/4h
  • Peak Power
    100 W
  • Pointing Stability :
    0.05 mrad
  • Power Supply
    85 to 264 VAC
  • Voltage
    0 to 5 VDC

Physical Properties

  • Laser Head Dimension
    140.8 x 73 x 46.2 mm
  • Laser Head Weight
    0.6 Kg
  • Power Supply Dimension
    133 x 130 x 65 mm
  • Power Supply Weight
    1.2 Kg
  • Beam Area
    1.2 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
  • Storage Temperature
    -10 to 50 Degree C
