Q530105SX

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laserglow Technologies.

The Q530105SX from Laserglow Technologies is a Laser with Wavelength 532 nm, Power 40 mW, Output Power (Pulsed) 40 mW, Pulse Energy 10 µJ, Pulse Width 10 ns. More details for Q530105SX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Q530105SX
  • Manufacturer
    Laserglow Technologies
  • Description

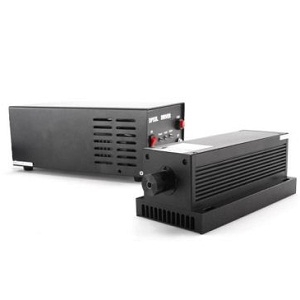

    532 nm Green Q-Switched DPSS Laser System

General Parameters

  • Type
    Laser system
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research
  • Application
    Fluorescence, Spectroscopy
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Spectral Width :
    0.12 nm
  • Power
    40 mW
  • Output Power (Pulsed)
    40 mW
  • Pulse Energy :
    10 µJ
  • Pulse Energy
    10 µJ
  • Pulse Width
    10 ns
  • Repetition Rate
    4 kHz
  • Technology
    Q-Switched Laser, DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-Mode
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.5 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Class
    Class IV
  • Warm up time
    10 Min.
  • Analog Modulation
    4 kHz
  • Power Consumption
    90 W
  • Power Stability
    5% RMS/4h
  • Peak Power
    500 W
  • Pointing Stability :
    0.05 mrad
  • Power Supply
    85 to 264 VAC
  • Voltage
    0 to 5 VDC

Physical Properties

  • Laser Head Dimension
    155 x 77 x 60 mm
  • Laser Head Weight
    0.9 Kg
  • Power Supply Dimension
    238 x 146 x 102 mm
  • Power Supply Weight
    2.3 Kg
  • Beam Area
    1 mm

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Operating Temperature
    10 to 35 Degree C
  • Storage Temperature
    -10 to 50 Degree C
