R5315CXSX

3,878 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laserglow Technologies.

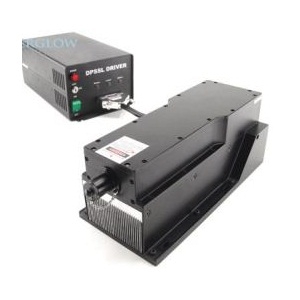

The R5315CXSX from Laserglow Technologies is a Laser with Wavelength 531.65 nm, Power 15000 mW, Output Power (CW) 15000 mW, Operating Temperature 10 to 35 Degree C, Storage Temperature -10 to 50 Degree C. More details for R5315CXSX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    R5315CXSX
  • Manufacturer
    Laserglow Technologies
  • Description
    532 nm Lab/OEM DPSS Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Environmental
  • Application
    Fluorescence, Imaging, Particle Counting, Particle Analysis, Spectroscopy
  • Operation Mode
    CW Laser
  • Wavelength
    531.65 nm
  • Wavelength Accuracy
    +/- 1 nm
  • Spectral Width :
    0.2 nm
  • Power
    15000 mW
  • Output Power (CW)
    15000 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-Mode
  • Laser Color
    Green
  • Transverse Mode
    Near TEM00
  • Beam Divergence :
    2 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Class
    Class IV
  • Warm up time
    10 Minutes
  • Modulation Frequency
    10 kHz
  • Power Consumption
    246 W
  • Power Stability
    10% RMS/4h
  • Pointing Stability :
    0.05 mrad
  • Power Supply
    85 to 264 V

Physical Properties

  • Laser Head Dimension
    346 x 140 x 125 mm(L x W x H)
  • Laser Head Weight
    6.1 Kg
  • Power Supply Dimension
    307 x 168 x 123 mm(L x W x H)
  • Power Supply Weight
    5.1 Kg
  • Beam Area
    4 mm

Environmental Conditions

  • Cooling Method
    Air cooled
  • Operating Temperature
    10 to 35 Degree C
  • Storage Temperature
    -10 to 50 Degree C
