R58500XSX

3,878 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laserglow Technologies.

The R58500XSX from Laserglow Technologies is a Laser with Wavelength 588.6 nm, Power 500 mW, Output Power (CW) 500 mW, Operating Temperature 10 to 35 Degree C, Storage Temperature -10 to 50 Degree C. More details for R58500XSX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    R58500XSX
  • Manufacturer
    Laserglow Technologies
  • Description

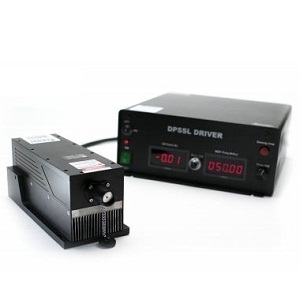

    589 nm Yellow DPSS Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    588.6 nm
  • Wavelength Accuracy
    +/- 2 nm
  • Power
    500 mW
  • Output Power (CW)
    500 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-Mode
  • Laser Color
    Yellow, Green
  • Transverse Mode
    Near TEM00
  • Beam Divergence :
    2 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Class
    Class IV
  • Warm up time
    10 Minutes
  • Digital Modulation
    10 kHz
  • Power Stability
    10% RMS/4h
  • Power Supply
    85 to 264 V
  • Voltage
    0 to 5 VDC

Physical Properties

  • Laser Head Dimension
    240 x 99 x 94 mm(L x W x H)
  • Laser Head Weight
    2.6 Kg
  • Power Supply Dimension
    238 x 146 x 102 mm(L x W x H)
  • Power Supply Weight
    2.3 Kg
  • Beam Area
    3 mm

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Operating Temperature
    10 to 35 Degree C
  • Storage Temperature
    -10 to 50 Degree C
