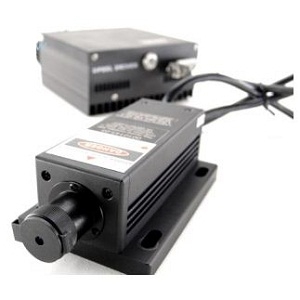

RB11003FX

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laserglow Technologies.

The RB11003FX from Laserglow Technologies is a Laser with Wavelength 1112 nm, Power 100 mW, Operating Temperature 10 to 35 Degree C, Storage Temperature -10 to 50 Degree C. More details for RB11003FX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RB11003FX
  • Manufacturer
    Laserglow Technologies
  • Description
    1112 nm IR DPSS Laser System

General Parameters

  • Type
    Laser system
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Communications
  • Application
    Test & Measurement, Optical Fiber Communication, Spectrum Analysis
  • Operation Mode
    CW Laser
  • Wavelength
    1112 nm
  • Wavelength Accuracy
    +/-3 nm
  • Power
    100 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Multi-Mode
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.5 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Class
    Class IIIb
  • Warm up time
    10 Min.
  • Modulation Frequency
    500 Hz
  • Analog Modulation
    500 Hz
  • Power Consumption
    35 W
  • Power Stability
    3% RMS/4h
  • Pointing Stability :
    0.05 mrad
  • Power Supply
    85 to 264 VAC
  • Voltage
    0 to 5 VDC

Physical Properties

  • Laser Head Dimension
    140.8 x 73 x 46.2 mm
  • Laser Head Weight
    0.6 kg
  • Power Supply Dimension
    154 x 155 x 95 mm
  • Power Supply Weight
    1.5 Kg
  • Beam Area
    1.5 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
  • Storage Temperature
    -10 to 50 Degree C
