LSR470CPF

Laser by Lasever
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasever.

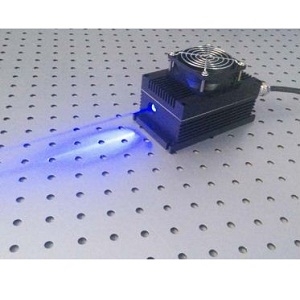

The LSR470CPF from Lasever is a Laser with Wavelength 470 nm, Power 3000 to 4000 mW, Output Power (CW) 3000 to 4000 mW. More details for LSR470CPF can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LSR470CPF
  • Manufacturer
    Lasever

General Parameters

  • Type
    Laser System, Alignment Laser
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Entertainment, Scientific / Research, Automotive / Industrial & Manufacturing, Defense / Military & Aerospace
  • Application
    Laser Light Shows, Display device, Alignment, Fluorescence, Microscopy, DNA Sequencing, Inspection & Measurement, LiDAR
  • Operation Mode
    CW Laser
  • Wavelength
    470 nm
  • Power
    3000 to 4000 mW
  • Output Power (CW)
    3000 to 4000 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Multi-Mode
  • Laser Color
    Blue
  • Beam Divergence :
    1.1 x 0.7 mrad
  • Warm up time
    1 Minutes
  • Modulation Frequency
    0 to 30 khz

Physical Properties

  • Laser Head Dimension
    150 x 84 x 73 mm
  • Power Supply Dimension
    100 x 58 x 32 mm3
