LSR532NL

Laser by Lasever
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasever.

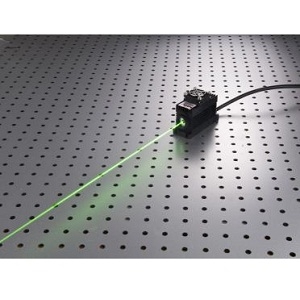

The LSR532NL from Lasever is a Laser with Wavelength 532 nm, Power 100 to 800 mW, Output Power (CW) 100 to 800 mW, Operating Temperature 20 to 30 Degree C, Storage Temperature 10 to 50 Degree C. More details for LSR532NL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LSR532NL
  • Manufacturer
    Lasever

General Parameters

  • Type
    Laser System, Alignment Laser
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Entertainment, Scientific / Research, Automotive / Industrial & Manufacturing, Defense / Military & Aerospace
  • Application
    Laser Light Shows, Display device, Alignment, Fluorescence, Microscopy, DNA Sequencing, Inspection & Measurement, LiDAR
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Power
    100 to 800 mW
  • Output Power (CW)
    100 to 800 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Transverse Mode
    near TEM00
  • Beam Divergence :
    1.5 mrad
  • Warm up time
    1 Minutes
  • Modulation Frequency
    0 to 30 khz
  • Pointing Stability :
    0.05 mrad

Physical Properties

  • Laser Head Dimension
    104 x 128 x 89mm3
  • Power Supply Dimension
    100 x 58 x 32 mm
  • Dimension
    100 x 40 x 50 mm
  • Beam Diameter
    2.5 mm

Environmental Conditions

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    10 to 50 Degree C

Technical Documents
