OPO-MIR-341

Laser by LD-PD Inc

Note: Your Quotation Request will be directed to LD-PD Inc.

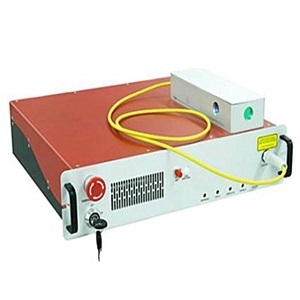

The OPO-MIR-341 from LD-PD Inc is a MIR Widely Tunable Single Frequency Fiber Laser that operates at a central wavelength of 3400 nm. It delivers an output power of up to 1 W (at 3.4 µm) and has a power stability of 1 % RMS. This continuous wave supercontinuum laser has a beam quality factor of less than 1.1 and polarization ratio above 20 dB. It has a tuning range of 300 nm and power adjust range of 10 % - 100 %. This laser is based on optical parameter oscillation (OPO) and operates in free space mode with a diffraction-limited beam. It is ideal for gas sensing, atmospheric remote sensing, biomedical analysis, and test & measurement applications.

Product Specifications

View similar products

Product Details

  • Part Number
    OPO-MIR-341
  • Manufacturer
    LD-PD Inc
  • Description
    3.4 µm MIR Single Frequency Fiber Laser for Gas Sensing Applications

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Environmental, Medical
  • Application
    Gas Sensing, Remote Sensing, Bio-Medical, Medical Imaging
  • Operation Mode
    CW Laser
  • Wavelength
    3400 nm
  • Power
    >1 W
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Laser Color
    Mid-Infrared
  • Polarization ratio :
    >20 dB
  • Beam Quality Factor (M2) :
    <1.1
  • Gain Medium Type
    Solid State Laser
  • Power Stability
    <1% rms (2 hours)
  • Note
    Tuning Range: 400nm

Physical Properties

  • Package
    Rackmount

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Operating Temperature
    20 to 25 Degree C
  • Storage Temperature
    20 to 25 Degree C
