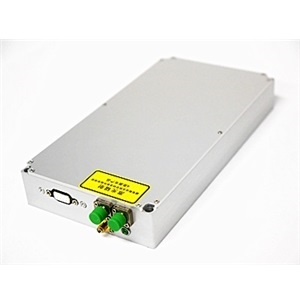

PL-PM-DCFL-SW120F-W1064-10-S-PA

Laser by LD-PD Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The PL-PM-DCFL-SW120F-W1064-10-S-PA from LD-PD Inc is a Laser with Wavelength 1064 nm, Power 10 mW, Pulse Energy 0.3 to 3 nJ, Pulse Width <10 ps, Repetition Rate 20 to 40 MHz. More details for PL-PM-DCFL-SW120F-W1064-10-S-PA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-PM-DCFL-SW120F-W1064-10-S-PA
  • Manufacturer
    LD-PD Inc
  • Description
    1064 nm ps Dual Channel fiber lasers

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Scientific / Research, Medical, Communications
  • Application
    Spectroscopy, Medical Imaging, Sensing, Optical Fiber Communication, Pumping Source
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    10 mW
  • Pulse Energy :
    0.3 to 3 nJ
  • Pulse Energy
    0.3 to 3 nJ
  • Pulse Width
    <10 ps
  • Repetition Rate
    20 to 40 MHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Polarization Maintaining
  • Laser Color
    Near-Infrared
  • Polarization ratio :
    >20 dB
  • Beam Quality Factor (M2) :
    <1.1
  • Gain Medium Type
    Solid State Laser
  • Connectors
    FC/APC
  • Current
    1 A
  • Power Consumption
    5 W
  • Power Stability
    <1% rms
  • Peak Power
    300 W
  • Voltage
    5 VDC
  • Note
    Start Time: <5 s

Physical Properties

  • Package
    Module
  • Dimension
    200 x 100 x 40 mm
  • Weight
    1 kg

Environmental Conditions

  • Operating Temperature
    10 to 50 Degree C
  • Storage Temperature
    0 to 60 Degree C

Technical Documents
Click to view more product details on manufacturer's website
