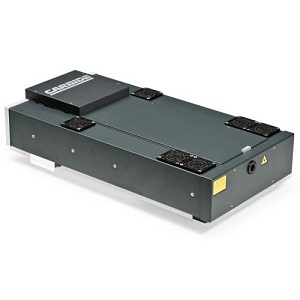

CARBIDE CB1-10

Laser by Light Conversion
Request Quote

Note: Your Quotation Request will be directed to Light Conversion.

The CARBIDE CB1-10 from Light Conversion is a Laser with Wavelength 1028 nm, Power > 10 W, Output Power (Pulsed) > 10 W, Pulse Energy > 100 µJ, Pulse Width 290 fs to 10 ps. More details for CARBIDE CB1-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CARBIDE CB1-10
  • Manufacturer
    Light Conversion
  • Description
    Femtosecond Lasers for Industry and Science

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Picosecond Lasers, Femtosecond Lasers
  • Application Industry
    Medical, Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Bio-Medical, Machine Vision, Absorption, Spectroscopy, Microscopy
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1028 nm
  • Wavelength Accuracy
    ± 5 nm
  • Power
    > 10 W
  • Output Power (Pulsed)
    > 10 W
  • Pulse Energy :
    > 100 µJ
  • Pulse Energy
    > 100 µJ
  • Pulse Width
    290 fs to 10 ps
  • Repetition Rate
    100 to 1000 kHz
  • Tunable
    Yes
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Power Stability
    < 0.5 % rms over 24 hours 4)
  • Power Supply
    110 to 220 VAC, 50 to 60 Hz, up to 300 W
  • Note
    Pulse picker leakage: < 2 %

Physical Properties

  • Laser Head Dimension
    631 (L) × 299 (W) × 189 (H) mm
  • Power Supply Dimension
    220 (L) × 95 (W) × 45 (H) mm

Environmental Conditions

  • Cooling Method
    Water-cooled
  • Operating Temperature
    17 to 27 Degree C
