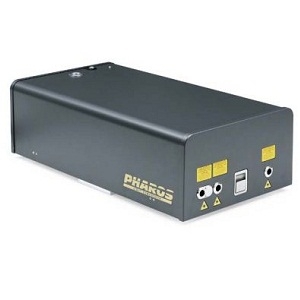

Pharos PH1-20

Laser by Light Conversion
Request Quote

Note: Your Quotation Request will be directed to Light Conversion.

The Pharos PH1-20 from Light Conversion is a Laser with Wavelength 1028 nm, Power 20 W, Output Power (Pulsed) 20 W, Pulse Energy 0.2 to 0.4 mJ, Pulse Width 290 fs to 10 ps. More details for Pharos PH1-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Pharos PH1-20
  • Manufacturer
    Light Conversion
  • Description
    High-Power Femtosecond Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Picosecond Lasers, Femtosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Medical
  • Application
    Machine Vision, Cutting, Ophthalmology
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1028 nm
  • Wavelength Accuracy
    ± 5 nm
  • Power
    20 W
  • Output Power (Pulsed)
    20 W
  • Pulse Energy :
    0.2 to 0.4 mJ
  • Pulse Energy
    0.2 to 0.4 mJ
  • Pulse Width
    290 fs to 10 ps
  • Repetition Rate
    1 to 200 kHz
  • Technology
    Solid State Laser
  • Tunable
    Yes
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization
    Horizontal
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ytterbium Laser
  • Modulation Frequency
    50 to 60 Hz
  • Power Stability
    < 0.5 % over 100 h
  • Pointing Stability :
    < 20 µrad/ Degree C
  • Power Supply
    110 VAC, 50 to 60 Hz, 20 A or 220 VAC, 50 to 60 Hz, 10 A

Physical Properties

  • Power Supply Dimension
    640 (L) × 520 (W) × 660 (H) mm

Environmental Conditions

  • Relative Humidity
    20 to 80 %, non-condensing
  • Operating Temperature
    15 to 30 Degree C
