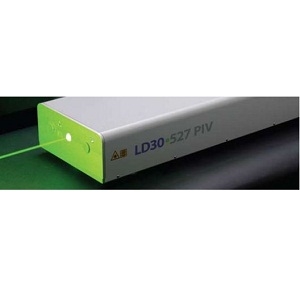

LD30-527 PIV

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Litron Lasers Ltd..

The LD30-527 PIV from Litron Lasers Ltd. is a Laser with Wavelength 527 nm, Power 45 W, Output Power (Pulsed) 45 W, Pulse Energy 30 mJ, Pulse Width 110 ns. More details for LD30-527 PIV can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LD30-527 PIV
  • Manufacturer
    Litron Lasers Ltd.
  • Description
    High Frequency Diode Pumped Q-switched Nd:YLF Lasers for PIV

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Environmental, Scientific / Research
  • Application
    Particle Analysis, Pumping Source, Flow Cytometry, Laser pumping
  • Operation Mode
    Pulsed Laser
  • Wavelength
    527 nm
  • Power
    45 W
  • Output Power (Pulsed)
    45 W
  • Pulse Energy :
    30 mJ
  • Pulse Energy
    30 mJ
  • Pulse Width
    110 ns
  • Repetition Rate
    0 to 20 KHz
  • Pulse to Pulse Stability
    ±1% rms
  • Technology
    DPSS Laser, Solid State Laser, Q-Switched Laser, Dye Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Beam Divergence :
    1.5 mrad
  • Beam Quality Factor (M2) :
    11, 7
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YLF
  • Laser Gain Medium
    Neodymium-Doped Lasers
  • Warm up time
    20 min
  • Modulation Frequency
    50 to 60 Hz
  • Interface
    RS232
  • Power Supply
    220 to 250 VAC
  • Note
    Mount: 19- 13U Rackmount

Physical Properties

  • Laser Head Weight
    67 kg
  • Power Supply Weight
    140 kg
  • Beam Diameter
    5 mm

Environmental Conditions

  • Operating Temperature
    5 to 35 Degree C
