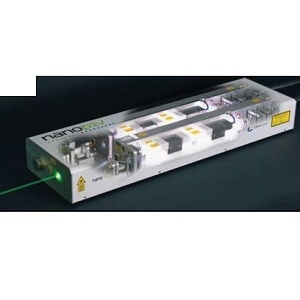

Nano TRL 250-20 PIV

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Litron Lasers Ltd..

The Nano TRL 250-20 PIV from Litron Lasers Ltd. is a Laser with Wavelength 532 nm, Pulse Energy 250 mJ, Pulse Width 5 to 7 ns, Repetition Rate 20 Hz, Operating Temperature 5 to 35 Degree C. More details for Nano TRL 250-20 PIV can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Nano TRL 250-20 PIV
  • Manufacturer
    Litron Lasers Ltd.
  • Description
    The Nano TRL PIV lasers are dual head high energy laser systems with output energies of up to 425 mJ at 532 nm

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research
  • Application
    Fluorescence
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Pulse Energy :
    250 mJ
  • Pulse Energy
    250 mJ
  • Pulse Width
    5 to 7 ns
  • Repetition Rate
    20 Hz
  • Pulse to Pulse Stability
    ±2% rms
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Beam Divergence :
    1.5 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped Lasers
  • Modulation Frequency
    50 to 60 Hz
  • Power Consumption
    2500 W
  • Pointing Stability :
    100 µrad
  • Power Supply
    220 to 250 VAC
  • Note
    Jitter: 0.5 ns

Physical Properties

  • Beam Diameter
    6.35 mm

Environmental Conditions

  • Cooling Method
    Air-Cooled
  • Operating Temperature
    5 to 35 Degree C
