1135_P

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumentum Operations LLC.

The 1135_P from Lumentum Operations LLC is a Laser with Wavelength 632.8 nm, Power 10 mW, Output Power (CW) 15 to 20 mW, Operating Temperature -40 to 70 Degree C. More details for 1135_P can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    1135_P
  • Manufacturer
    Lumentum Operations LLC
  • Description

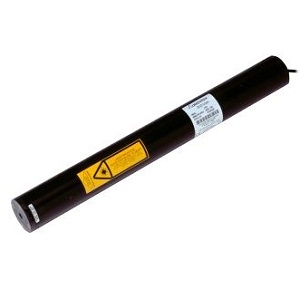

    Helium-Neon Laser Heads

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Medical
  • Application
    Flow Cytometry, Metrology, Inspection & Measurement, Alignment, Fluorescence, Bio-Medical, 3D Printing
  • Operation Mode
    CW Laser
  • Wavelength
    632.8 nm
  • Power
    10 mW
  • Output Power (CW)
    15 to 20 mW
  • Technology
    Gas Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Orange
  • Beam Divergence :
    1.2 mrad
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Helium-Neon
  • Laser Gain Medium
    Neutral Atom Gas Laser
  • Current
    6.5 mA
  • Laser Class
    Class IIIb/3B
  • Warm up time
    15 min
  • Voltage
    3100 VDC

Physical Properties

  • Laser Head Weight
    1.5 lbs
  • Beam Diameter
    0.68 mm

Environmental Conditions

  • Relative Humidity
    0 to 100% (Non-Condensing)
  • Operating Temperature
    -40 to 70 Degree C
