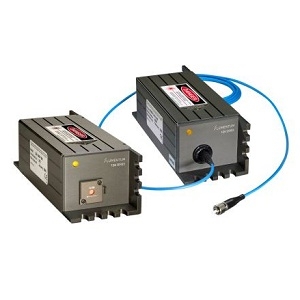

125N-1319-xxx

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumentum Operations LLC.

The 125N-1319-xxx from Lumentum Operations LLC is a Laser with Wavelength 1319 nm, Power 100, 150, 200 mW, Output Power (CW) 10 to 20 mW, Operating Temperature 15 to 35 Degree C, Storage Temperature -20 to 55 Degree C. More details for 125N-1319-xxx can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    125N-1319-xxx
  • Manufacturer
    Lumentum Operations LLC
  • Description
    Continuous-Wave (CW) Single-Frequency IR Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Scientific / Research, Communications, Environmental, Defense / Military & Aerospace
  • Application
    Sensing, Optical Fiber Communication, Remote Sensing, LiDAR, Imaging, Free-Space Optical Communication
  • Operation Mode
    CW Laser
  • Wavelength
    1319 nm
  • Spectral Width :
    5 kHz/ms
  • Power
    100, 150, 200 mW
  • Output Power (CW)
    10 to 20 mW
  • Technology
    DPSS Laser
  • Tunable
    Yes
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Connectors
    FC, PC
  • Warm up time
    1 min
  • Modulation Frequency
    50 MHz/hr
  • RMS Noise Power
    0.05% rms
  • Voltage
    100 to 240 V AC, 47 to 63 Hz

Physical Properties

  • Laser Head Dimension
    69.9 x 57.2 x 185.4 mm
  • Laser Head Weight
    1.2 kg (2.65 lbs)

Environmental Conditions

  • Relative Humidity
    10 to 80% (Non-Condensing)
  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    -20 to 55 Degree C
