1507P

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumentum Operations LLC.

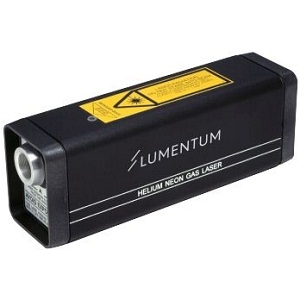

The 1507P from Lumentum Operations LLC is a Laser with Wavelength 632.8 nm, Power 0.8 mW, Output Power (CW) 0.8 mW, Operating Temperature -40 to 70 Degree C, Storage Temperature -40 to 150 Degree C. More details for 1507P can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    1507P
  • Manufacturer
    Lumentum Operations LLC
  • Description
    Self-Contained Helium-Neon Laser Systems

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Alignment, Metrology, Inspection & Measurement
  • Operation Mode
    CW Laser
  • Wavelength
    632.8 nm
  • Power
    0.8 mW
  • Output Power (CW)
    0.8 mW
  • Technology
    Gas Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Orange
  • Beam Divergence :
    1.7 mrad
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Helium-Neon
  • Laser Gain Medium
    Neutral Atom Gas Laser
  • Current
    400 mA
  • Laser Class
    Class IIIa/3R
  • Warm up time
    10 min
  • RMS Noise Power
    1% rms
  • Voltage
    100 to 220 VAC

Physical Properties

  • Laser Head Weight
    1.1 lbs.
  • Beam Diameter
    0.48 mm

Environmental Conditions

  • Relative Humidity
    0 to 70% (Non-Condensing)
  • Operating Temperature
    -40 to 70 Degree C
  • Storage Temperature
    -40 to 150 Degree C
