2214 -xxSL

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumentum Operations LLC.

The 2214 -xxSL from Lumentum Operations LLC is a Laser with Wavelength 488 nm, Power 10 to 30 mW, Output Power (CW) 100 mW, Repetition Rate 1 kHz to 250 kHz, Operating Temperature 4 to 40 Degree C. More details for 2214 -xxSL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    2214 -xxSL
  • Manufacturer
    Lumentum Operations LLC
  • Description

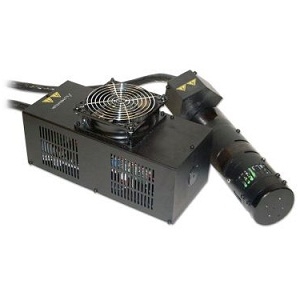

    Air-Cooled Argon-Ion Laser Heads in Cylindrical and Rectangular Packages

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head, OEM Laser Module
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Medical
  • Application
    DNA Sequencing, Flow Cytometry, Microscopy, Inspection & Measurement, Bio-Medical, 3D Printing, Material processing
  • Operation Mode
    CW Laser
  • Wavelength
    488 nm
  • Power
    10 to 30 mW
  • Output Power (CW)
    100 mW
  • Repetition Rate
    1 kHz to 250 kHz
  • Technology
    Gas Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Blue
  • Transverse Mode
    TEM00
  • Beam Divergence :
    0.90 mrad
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Argon Ion
  • Laser Gain Medium
    Ion Laser
  • Laser Class
    Class IIIb
  • Warm up time
    5 min
  • RMS Noise Power
    0.1 to 1% rms

Physical Properties

  • Weight
    8.5 lbs
  • Beam Diameter
    0.70 mm

Environmental Conditions

  • Relative Humidity
    0 to 90% (Non-Condensing)
  • Operating Temperature
    4 to 40 Degree C
  • Storage Temperature
    -30 to 60 Degree C

Technical Documents
Click to view more product details on manufacturer's website
