FCD488FC-010_020

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumentum Operations LLC.

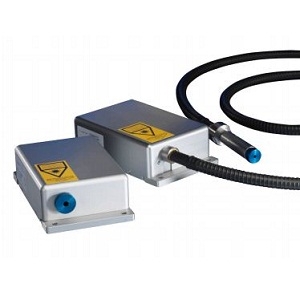

The FCD488FC-010_020 from Lumentum Operations LLC is a Laser with Wavelength 488 nm, Power 10 to 20 mW, Output Power (CW) 10 mW, Operating Temperature 10 to 45 Degree C. More details for FCD488FC-010_020 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FCD488FC-010_020
  • Manufacturer
    Lumentum Operations LLC
  • Description
    Continuous-Wave Solid-State Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Scientific / Research
  • Application
    Fluorescence, Microscopy, DNA Sequencing, Metrology
  • Operation Mode
    CW Laser
  • Wavelength
    488 nm
  • Power
    10 to 20 mW
  • Output Power (CW)
    10 mW
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Blue
  • Beam Divergence :
    1 mrad
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    10 min
  • Pointing Stability :
    10 µrad/ Degree C
  • RMS Noise Power
    0.5% rms
  • Interface
    RS-232
  • Voltage
    5.0 ±0.4 V DC

Physical Properties

  • Beam Diameter
    0.7 mm

Environmental Conditions

  • Relative Humidity
    0 to 60% (Non-Condensing)
  • Operating Temperature
    10 to 45 Degree C
