Q306-HD-1000R

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumentum Operations LLC.

The Q306-HD-1000R from Lumentum Operations LLC is a Laser with Wavelength 354.7 nm, Power 40.0, 20.0, 12.0 W, Output Power (CW) 10 W, Pulse Width 50 to 220 ns, Operating Temperature 15 to 35 Degree C. More details for Q306-HD-1000R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Q306-HD-1000R
  • Manufacturer
    Lumentum Operations LLC
  • Description

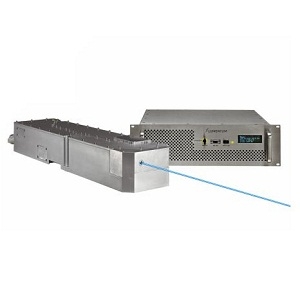

    High-Power Q-Switched Diode-Pumped UV Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Scribing, Dicing, Machine Vision, Spectroscopy, Interferometry, Drilling, Cutting
  • Operation Mode
    CW Laser
  • Wavelength
    354.7 nm
  • Power
    40.0, 20.0, 12.0 W
  • Output Power (CW)
    10 W
  • Pulse Width
    50 to 220 ns
  • Technology
    Q-Switched Laser, DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Ultraviolet
  • Polarization
    Horizontal
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.6 mrad
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    10 to 20 min
  • Modulation Frequency
    50 to 60 Hz
  • Pointing Stability :
    50 µrad/ Degree C
  • Voltage
    200 to 240 V AC,

Physical Properties

  • Power Supply Dimension
    3.0 m (9.8 ft) or 5.0 m (16.4 ft) or 7.0 m (23.0 ft)
  • Power Supply Weight
    154 lb (70 kg)
  • Weight
    18.6 kg

Environmental Conditions

  • Relative Humidity
    10 to 80% (Non-Condensing)
  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    10 to 80 Degree C
