Q332-HD-1000R

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumentum Operations LLC.

The Q332-HD-1000R from Lumentum Operations LLC is a Laser with Wavelength 355 nm, Power 4.0, 3.4, 2.5 W, Output Power (Pulsed) 11.0, 9.5, 6.3 W, Pulse Energy 30 kHz, Pulse Width 69±20, 94±25, 121±34 ns. More details for Q332-HD-1000R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Q332-HD-1000R
  • Manufacturer
    Lumentum Operations LLC
  • Description

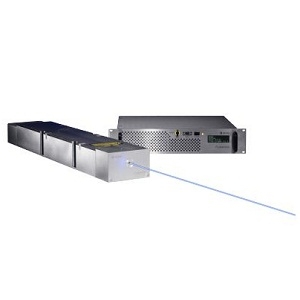

    High-Power Q-Switched Diode-Pumped UV and Green Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Scribing, Dicing, Machine Vision, Spectroscopy, Interferometry, Drilling, Cutting
  • Operation Mode
    Pulsed Laser
  • Wavelength
    355 nm
  • Power
    4.0, 3.4, 2.5 W
  • Output Power (Pulsed)
    11.0, 9.5, 6.3 W
  • Pulse Energy :
    30 kHz
  • Pulse Width
    69±20, 94±25, 121±34 ns
  • Repetition Rate
    1 kHz to 250 kHz
  • Technology
    Q-Switched Laser, DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization
    Horizontal
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.8±0.35 mrad
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    10 to 20 min
  • Modulation Frequency
    50 to 60 Hz
  • Pointing Stability :
    50 µrad/ Degree C
  • Voltage
    100 to 240 VAC

Physical Properties

  • Weight
    14.5 kg

Environmental Conditions

  • Relative Humidity
    10 to 80% (Non-Condensing)
  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    10 to 80 Degree C
