Features:
- Compact design
- Light spot uniformity
- Adjustable output laser power
- High-power structured light laser
- Wide temperature-stable operation
- Adapt to the requirements of the outdoor environment
- Avoid sunlight interference
- Customization requirements
Applications:
3D reconstruction
Industrial inspection
Road surface detection
Logistics volume detection
Railway track
vehicle&pantograph detection

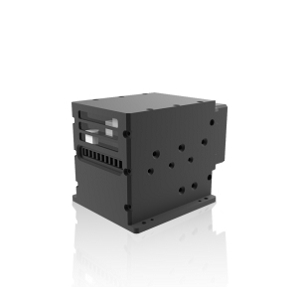

In the field of vision inspection, Lumispot Tech has developed a small-sized structured light laser to meet customers' component development needs, which is now widely used in various component products. The Seris of multiple laser-line light source, which has 2 main models: Three laser-line illumination and multiple laser-line illuminations, it has the features of a compact design, wide temperature range for stable operation and power-adjustable, a number of grating and fan angle degree customized, while ensuring the uniformity of the output spot and avoiding the interference of sunlight on the laser effect. As a result, this type of product is mainly applied in 3D remodeling, railroad wheel pairs, track, pavement, and industrial inspection.The center wavelength of the laser is 808nm, power range of 5W-15W, with customization and multiple fan angle sets available. The heat dissipation depends on the air-cooled structure configuration, a layer of thermal conductive silicone grease is applied on the bottom of the module and the mounting surface of the body to help dissipate heat, while supporting temperature protection. The laser machine is able to work in a wide temperature range of -30℃ to 50℃, which is completely suitable for outdoor environments. To be attention, this is not an eye-safety laser wavelength, it is necessary to prevent direct eye contact with the laser output from damage.
Lumispot tech has a perfect process flow from strict chip soldering to reflector debugging with automated equipment, high and low-temperature testing, to final product inspection to determine product quality. We are able to provide industrial solutions for customers with different needs, the specific data of products can be downloaded below, for any other questions, please feel free to contact us.
General Parameters
Type
Laser Module
Configuration
Laser Head with Control Unit (Integrated)
Application Industry
Automotive / Industrial & Manufacturing
Application
3D Reconstruction, Logistics Volume Detection, Road Surface Detection, Industrial Inspection, Railway Wheelset Inspection, Track Inspection
Operation Mode
CW Laser
Wavelength
808 nm
Power
15 W
Repetition Rate
0 to 15000 Hz
Tunable
No
Fiber Coupled
No
Laser Color
Near-Infrared
Duty Cycle :
<20%
Power Consumption
<25 W
Voltage
24 V
Physical Properties
Package
Module
Dimension
114.5 x 80 x 84 mm
Environmental Conditions
Cooling Method
Air Cooled
Operating Temperature
-30 to 50 Degree C
Storage Temperature
-40 to 70 Degree C
