LM-1535-P200-A3

Laser by Lumispot Tech
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumispot Tech.

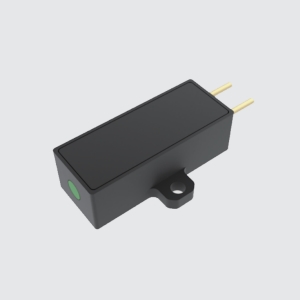

The LM-1535-P200-A3 from Lumispot Tech is a Laser with Wavelength 1535 nm, Power 50 kW, Pulse Energy 200 µJ, Pulse Width 3 ns to 2.5 ms, Repetition Rate 1 to 10 Hz. More details for LM-1535-P200-A3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LM-1535-P200-A3
  • Manufacturer
    Lumispot Tech
  • Description
    1535 nm Near-Infrared Pulsed Laser Module

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Defense / Military & Aerospace
  • Application
    Laser Ranging, LIDAR, Laser Communication
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1535 nm
  • Power
    50 kW
  • Pulse Energy :
    200 µJ
  • Pulse Energy
    200 µJ
  • Pulse Width
    3 ns to 2.5 ms
  • Repetition Rate
    1 to 10 Hz
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Near-Infrared
  • Beam Divergence :
    <12 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Erbium-Doped Fiber
  • Laser Gain Medium
    Erbium-Doped, Glass Lasers
  • Current
    12 A
  • Energy Stability
    <5%
  • Peak Power
    50 kW
  • Voltage
    2 V

Physical Properties

  • Package
    Module
  • Weight
    <10 g

Environmental Conditions

  • Operating Temperature
    -40 to 60 Degree C
  • Storage Temperature
    -50 to 70 Degree C
