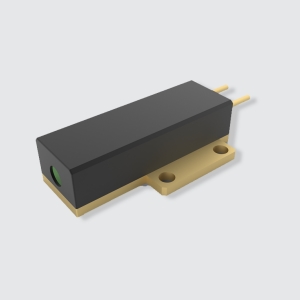

LM-1535-P500-C9

Laser by Lumispot Tech
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumispot Tech.

The LM-1535-P500-C9 from Lumispot Tech is a Laser with Wavelength 1537 nm, Power 10 kW, Pulse Energy 500 µJ, Pulse Width 4 ns to 7 ns, Repetition Rate 10 Hz. More details for LM-1535-P500-C9 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LM-1535-P500-C9
  • Manufacturer
    Lumispot Tech
  • Description
    1537 nm Near-Infrared Pulsed Laser Module

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Defense / Military & Aerospace
  • Application
    Laser Ranging, LIDAR, Laser Communication
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1537 nm
  • Power
    10 kW
  • Pulse Energy :
    500 µJ
  • Pulse Energy
    500 µJ
  • Pulse Width
    4 ns to 7 ns
  • Repetition Rate
    10 Hz
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Near-Infrared
  • Beam Divergence :
    <5 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Erbium-Doped Fiber
  • Laser Gain Medium
    Erbium-Doped, Glass Lasers
  • Current
    20 A
  • Energy Stability
    <5%
  • Peak Power
    10 kW
  • Voltage
    4 V

Physical Properties

  • Package
    Module
  • Weight
    <20 g

Environmental Conditions

  • Operating Temperature
    -40 to 60 Degree C
  • Storage Temperature
    -55 to 75 Degree C
