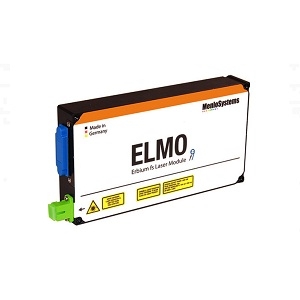

E L M 0

Laser by Menlo Systems
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Menlo Systems.

The E L M 0 from Menlo Systems is a Laser with Wavelength 1560 nm, Power 10 to 15 mW, Output Power (Pulsed) 10 to 15 mW, Pulse Width 150 fs, Repetition Rate 50 to 100 MHz. More details for E L M 0 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    E L M 0
  • Manufacturer
    Menlo Systems
  • Description
    Femtosecond Fiber Seed Laser 1560 nm

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Engraving, Marking, Surface Treatment, Atomic & Molecular Physics, Spectroscopy
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1560 nm
  • Wavelength Accuracy
    ± 30 nm
  • Power
    10 to 15 mW
  • Output Power (Pulsed)
    10 to 15 mW
  • Pulse Width
    150 fs
  • Repetition Rate
    50 to 100 MHz
  • Technology
    Mode-Locked Laser, Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Polarization Orientation
    Linear
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Erbium-Doped Laser
  • Warm up time
    1 Minute
  • Power Consumption
    10 VA
  • Voltage
    12 VDC/2 A

Physical Properties

  • Laser Head Dimension
    195 x 95 x 28 mm³
  • Laser Head Weight
    0.7 kg

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C
