CL1064-5KHz-400µJ-ME005

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Nanjing Crylink Photonics.

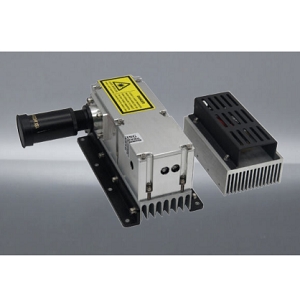

The CL1064-5KHz-400µJ-ME005 from Nanjing Crylink Photonics is a Laser with Wavelength 1064 nm, Power 2000 mW, Pulse Energy 400 µJ, Pulse Width 6000 ps, Repetition Rate 5 kHz. More details for CL1064-5KHz-400µJ-ME005 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CL1064-5KHz-400µJ-ME005
  • Manufacturer
    Nanjing Crylink Photonics
  • Description
    1064 nm Near-Infrared Nd:YAG Q-Switched, Solid State, Picosecond Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing, Environmental
  • Application
    Glass, Ceramic, Gem, Plastic Marking, Laser Microprocessing, Analysis Instrument, Bioluminescent Molecule
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    2000 mW
  • Pulse Energy :
    400 µJ
  • Pulse Energy
    400 µJ
  • Pulse Width
    6000 ps
  • Repetition Rate
    5 kHz
  • Technology
    Solid State Laser, Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Near-Infrared
  • Polarization ratio :
    >100:1
  • Transverse Mode
    TEM00
  • Beam Divergence :
    <1 Mrad (full angle)
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped
  • Laser Class
    Class 3B, Class 4
  • Power Consumption
    >200 W
  • Power Stability
    ±3% (8h)
  • Voltage
    12 V

Physical Properties

  • Laser Head Dimension
    60 x 39 x 158 mm (W x H x L)
  • Beam Diameter
    9 mm (Collimating spot)

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    -40 to 65 Degree C
