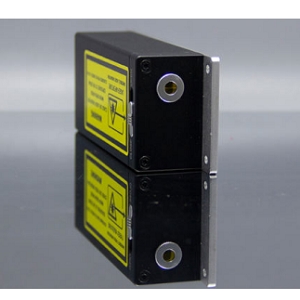

CL266-10kHz-3µJ-MA003

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Nanjing Crylink Photonics.

The CL266-10kHz-3µJ-MA003 from Nanjing Crylink Photonics is a Laser with Wavelength 266 nm, Power 30 mW, Pulse Energy 3 µJ, Pulse Width 1200 ps, Repetition Rate 10 kHz. More details for CL266-10kHz-3µJ-MA003 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CL266-10kHz-3µJ-MA003
  • Manufacturer
    Nanjing Crylink Photonics
  • Description
    266 nm Ultraviolet Nd:YAG Q-Switched, Solid State, Picosecond Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Defense / Military & Aerospace, Environmental, Scientific / Research, Medical
  • Application
    Lidar, Laser Ranging, Atmospheric Monitoring, Optical Metrology, Laser Ionization Mass Spectrometry, Biomedical Science
  • Operation Mode
    Pulsed Laser
  • Wavelength
    266 nm
  • Power
    30 mW
  • Pulse Energy :
    3 µJ
  • Pulse Energy
    3 µJ
  • Pulse Width
    1200 ps
  • Repetition Rate
    10 kHz
  • Technology
    Solid State Laser, Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization ratio :
    >100:1
  • Transverse Mode
    TEM00
  • Beam Divergence :
    5 Mrad (full angle)
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped
  • Laser Class
    Class 3B, Class 4
  • Power Consumption
    <35 W
  • Power Stability
    ±3% (8h)
  • Interface
    RS232, USB
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz

Physical Properties

  • Package
    Benchtop
  • Laser Head Dimension
    45 x 30 x 120 mm (W x H x L)
  • Power Supply Dimension
    168 x 88 x 140 mm (W x H x L)

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    0 to 60 Degree C
