CL532-0.1kHz-30µJ-MD003

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Nanjing Crylink Photonics.

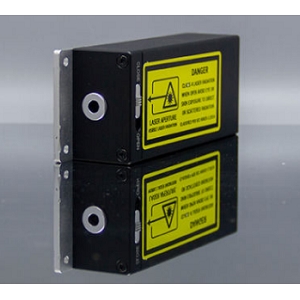

The CL532-0.1kHz-30µJ-MD003 from Nanjing Crylink Photonics is a Laser with Wavelength 532 nm, Power 3 mW, Pulse Energy 30 µJ, Pulse Width 300 ps, Repetition Rate 0.1 kHz. More details for CL532-0.1kHz-30µJ-MD003 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CL532-0.1kHz-30µJ-MD003
  • Manufacturer
    Nanjing Crylink Photonics
  • Description
    532 nm Green Nd:YAG Q-Switched, Solid State, Picosecond Lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Scientific / Research
  • Application
    Seed Source, Micromachining, Fluorescence Lifetime Measurement, Laser-Induced Fluorescence, Laser Ionization Mass Spectrometry, Non-Linear Optical Measurement
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    3 mW
  • Pulse Energy :
    30 µJ
  • Pulse Energy
    30 µJ
  • Pulse Width
    300 ps
  • Repetition Rate
    0.1 kHz
  • Technology
    Solid State Laser, Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization ratio :
    >100:1
  • Transverse Mode
    TEM00
  • Beam Divergence :
    10 Mrad (full angle)
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped
  • Laser Class
    Class 3B, Class 4
  • Power Consumption
    <25 W
  • Power Stability
    ±3% (8h)
  • Interface
    RS232, USB
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz

Physical Properties

  • Package
    Benchtop
  • Laser Head Dimension
    45 x 30 x 120 mm (W x H x L)
  • Power Supply Dimension
    168 x 88 x 140 mm (W x H x L)

Environmental Conditions

  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    0 to 60 Degree C

Technical Documents
Click to view more product details on manufacturer's website
Request a Quote
