N61 488nm

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to National Laser Company.

The N61 488nm from National Laser Company is a Laser with Wavelength 488 nm, Power 10 to 15 mW, Output Power (CW) 10 to 15 mW, Operating Temperature 4 to 40 Degree C, Storage Temperature -30 to 60 Degree C. More details for N61 488nm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    N61 488nm
  • Manufacturer
    National Laser Company
  • Description

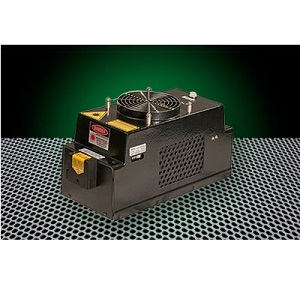

    N61 Air-Cooled Argon Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Medical
  • Application
    3D Printing, Machine Vision, Flow Cytometry, DNA Sequencing, Microscopy, Spectroscopy, Bio-Medical, Oncology, Laser Surgery, Medical Imaging
  • Operation Mode
    CW Laser
  • Wavelength
    488 nm
  • Power
    10 to 15 mW
  • Output Power (CW)
    10 to 15 mW
  • Technology
    Gas Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Blue
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1 mrad
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Argon Ion
  • Laser Gain Medium
    Ion Laser
  • Current
    7 to 16 A
  • Modulation Frequency
    47 to 63 Hz
  • Power Stability
    ±1%
  • Pointing Stability :
    30 µrad
  • Power Supply
    100-240 VAC

Physical Properties

  • Laser Head Weight
    5.03 to 5.62 kg
  • Beam Diameter
    0.65 mm

Environmental Conditions

  • Relative Humidity
    90%, 100%
  • Operating Temperature
    4 to 40 Degree C
  • Storage Temperature
    -30 to 60 Degree C
