CW Ytterbium Fiber Laser

Request Quote

Note: Your Quotation Request will be directed to Neptec Optical Solutions.

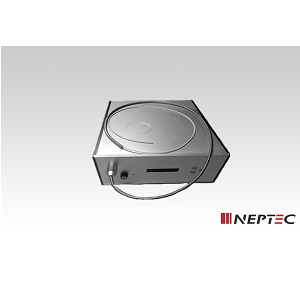

The CW Ytterbium Fiber Laser from Neptec Optical Solutions is a Laser with Wavelength 1064 nm, Power 1 to 10 W, Operating Temperature -5 to 40 Degree C, Storage Temperature -20 to 70 Degree C. More details for CW Ytterbium Fiber Laser can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CW Ytterbium Fiber Laser
  • Manufacturer
    Neptec Optical Solutions
  • Description
    CW Ytterbium Fiber Laser

General Parameters

  • Type
    Laser system
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research
  • Application
    Test & Measurement
  • Operation Mode
    CW Laser
  • Wavelength
    1064 nm
  • Wavelength Accuracy
    ±2 nm
  • Spectral Width :
    0.5 nm
  • Power
    1 to 10 W
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Polarization Orientation
    Random
  • Gain Medium Type
    Solid State Laser
  • Laser Gain Medium
    Ytterbium Laser
  • Power Consumption
    100 W
  • Interface
    RS-232
  • Power Supply
    100 to 220 VAC

Physical Properties

  • Package
    Benchtop
  • Dimension
    360 x 300 x 130 mm
  • Weight
    10.5 Kg
  • Fiber length
    F6.5 mm

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Relative Humidity
    10 to 90%
  • Operating Temperature
    -5 to 40 Degree C
  • Storage Temperature
    -20 to 70 Degree C
Click to view more product details on manufacturer's website
