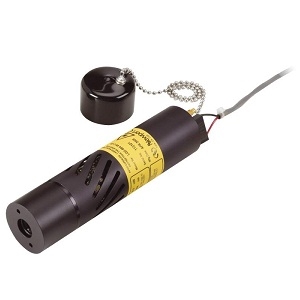

LQA940-90E

Laser by MKS | Newport
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MKS | Newport.

The LQA940-90E from MKS | Newport is a Laser with Wavelength 940 nm, Power 90 mW, Output Power (CW) 90 mW, Operating Temperature 0 to 40 Degree C. More details for LQA940-90E can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LQA940-90E
  • Manufacturer
    MKS | Newport
  • Description
    LD Module, 940nm, 90mW, Analog, Elliptical beam

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Spectroscopy, Interferometry, Machine Vision, Marking, Flow Cytometry, Fluorescence
  • Operation Mode
    CW Laser
  • Wavelength
    940 nm
  • Wavelength Accuracy
    ±15 nm
  • Power
    90 mW
  • Output Power (CW)
    90 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Beam Divergence :
    <1.5 x 0.7 mrad
  • Beam Shape
    Elliptical
  • Current
    3000 mA
  • Warm up time
    6 ns
  • Power Stability
    <1% (8 hr.)
  • RMS Noise Power
    <0.5% rms
  • Voltage
    4.8 to 12 VDC

Physical Properties

  • Beam Diameter
    1.5 x 5.25 mm
  • Fiber diameter
    38.1 mm
  • Fiber length
    6.20 in. ( 157.48 mm)

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
