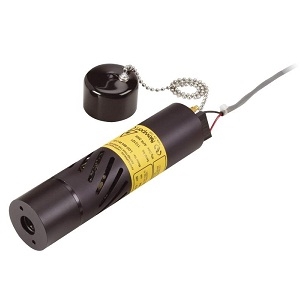

LQD658-30C

Laser by MKS | Newport
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MKS | Newport.

The LQD658-30C from MKS | Newport is a Laser with Wavelength 658 nm, Power 30 mW, Output Power (CW) 30 mW, Operating Temperature 0 to 40 Degree C. More details for LQD658-30C can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LQD658-30C
  • Manufacturer
    MKS | Newport
  • Description
    D Module, 658nm, 30mW, Digital, Circular beam

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Spectroscopy, Interferometry, Machine Vision, Marking, Flow Cytometry, Fluorescence
  • Operation Mode
    CW Laser
  • Wavelength
    658 nm
  • Wavelength Accuracy
    ±10 nm
  • Power
    30 mW
  • Output Power (CW)
    30 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    <1.2 mrad
  • Beam Shape
    Circular
  • Current
    3000 mA
  • Warm up time
    2 ns
  • Power Stability
    <1% (8 hr.)
  • RMS Noise Power
    <0.5% rms
  • Voltage
    4.8 to 12 VDC

Physical Properties

  • Laser Head Dimension
    1.50 D x 6.20 L (38.05 D x 157.48 L)
  • Beam Diameter
    1 mm
  • Fiber diameter
    38.1 mm
  • Fiber length
    6.20 in. ( 157.48 mm)

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
