R-30972

Laser by MKS | Newport
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MKS | Newport.

The R-30972 from MKS | Newport is a Laser with Wavelength 543 nm, Power 2 mW, Output Power (CW) 2 mW. More details for R-30972 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    R-30972
  • Manufacturer
    MKS | Newport
  • Description

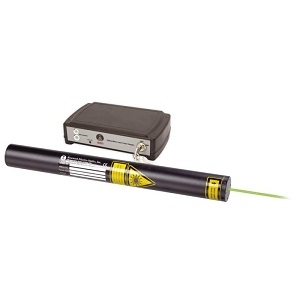

    Green HeNe Laser, 543 nm, 2.0 mW, Random Polarization, CE

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Medical, Environmental
  • Application
    Alignment, Metrology, Diagnosis, Monitoring, Flow Cytometry, Microscopy, DNA Sequencing
  • Operation Mode
    CW Laser
  • Wavelength
    543 nm
  • Power
    2 mW
  • Output Power (CW)
    2 mW
  • Technology
    Gas Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization Orientation
    Random
  • Transverse Mode
    TEM00
  • Beam Divergence :
    0.84 mrad
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Helium-Neon
  • Laser Gain Medium
    Neutral Atom Gas Laser
  • Laser Class
    Class IIIA
  • RMS Noise Power
    1% rms
  • Power Supply
    120/240 VAC, 50/60 Hz

Physical Properties

  • Beam Diameter
    0.83 mm
