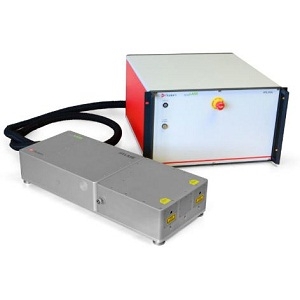

HYLASE-25

Laser by NKT Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to NKT Photonics.

The HYLASE-25 from NKT Photonics is a Laser with Wavelength 1064 nm, Power 25 W, Output Power (Pulsed) 25 W, Pulse Energy 60 to 125 µJ, Pulse Width 15 ps. More details for HYLASE-25 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HYLASE-25
  • Manufacturer
    NKT Photonics
  • Description
    HYLASE high energy ultrafast lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Material processing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    25 W
  • Output Power (Pulsed)
    25 W
  • Pulse Energy :
    60 to 125 µJ
  • Pulse Energy
    60 to 125 µJ
  • Pulse Width
    15 ps
  • Repetition Rate
    40 MHz
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Warm up time
    30 minutes

Physical Properties

  • Package
    Rack-Mount
  • Laser Head Dimension
    550x220x98 mm
  • Power Supply Dimension
    19'' rackmount,
  • Weight
    20 Kg
