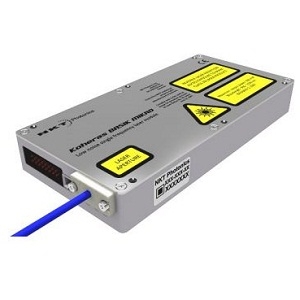

Koheras BASIK MIKRO C15

Laser by NKT Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to NKT Photonics.

The Koheras BASIK MIKRO C15 from NKT Photonics is a Laser with Wavelength 1535 to 1580 nm, Power 0.01 W, Output Power (CW) 10 W, Operating Temperature 10 to 60 Degree C. More details for Koheras BASIK MIKRO C15 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Koheras BASIK MIKRO C15
  • Manufacturer
    NKT Photonics
  • Description
    Koheras BASIK MIKRO Compact low noise 1.5 µm OEM fiber laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Application Industry
    Scientific / Research, Environmental, Defense / Military & Aerospace
  • Application
    Sensing, Monitoring, Surveillance, Interferometry
  • Operation Mode
    CW Laser
  • Wavelength
    1535 to 1580 nm
  • Power
    0.01 W
  • Output Power (CW)
    10 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Gain Medium Type
    Solid State Laser
  • Connectors
    FC, APC
  • Power Consumption
    4 to 12 W
  • Interface
    RS-485
  • Voltage
    12 VDC

Physical Properties

  • Weight
    0.35 Kg

Environmental Conditions

  • Cooling Method
    Passive Cooled, Air Cooled, Water Cooled
  • Relative Humidity
    0 to 70 %RH
  • Operating Temperature
    10 to 60 Degree C
